HANGAR DOORS · LARGE INDUSTRIAL OPENINGS
Unlimited Access Solutions
REKORD ACCESS Solutions are built on decades of experience in designing and delivering large access solutions. Every system is custom-engineered for large and challenging openings, tailored to the project’s operational and structural requirements while ensuring cost-effective manufacturing and installation.
- Maximum clear width
- No width limitation
- Maximum clear height
- No height limitation
- Wind load resistance
- As requested. Class 5
- Operation with wind speed
- Tested with 90 km/h
- Certification
- Tested & CE marked.
Designed in Finland. Manufactured in Poland. Delivered Globally
Rekord Access combines decades of experience in large industrial doors with Finnish design expertise and Polish manufacturing know-how. We design and manufacture reliable, modular access solutions using proven European technology and components.
About the company →- –
- VLD experience
- +30 years
- Manufacturing capabilities
- ISO 9001. ISO 14001. 10.000 m2
- Operations
- All continents
- Partner network
- In full expansion
End uses – Our solutions

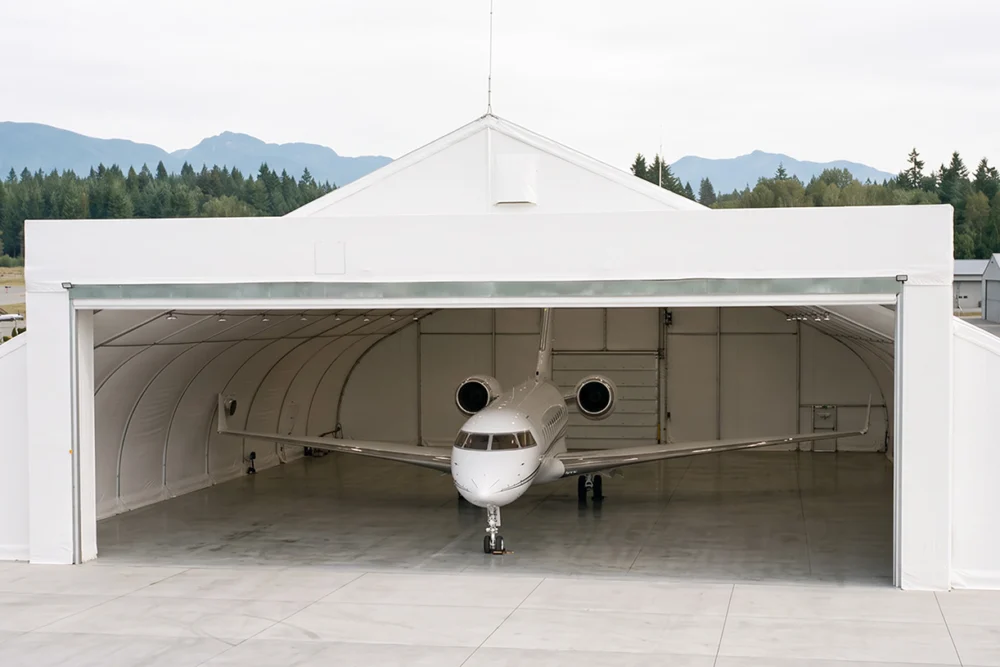

Large Aviation
Tailor-made fabric fold-up doors for commercial aircraft hangars and MRO facilities.
Request a quote →

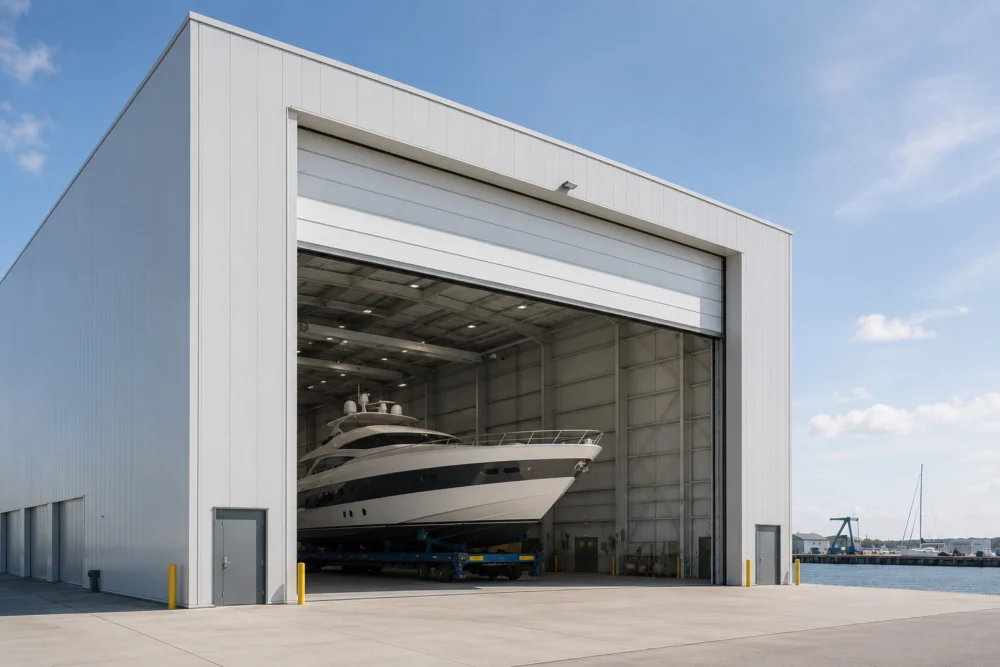

Maritime & Large Industry
Durable access solutions for demanding manufacturing operations in shipyards and heavy industry.
Request a quote →

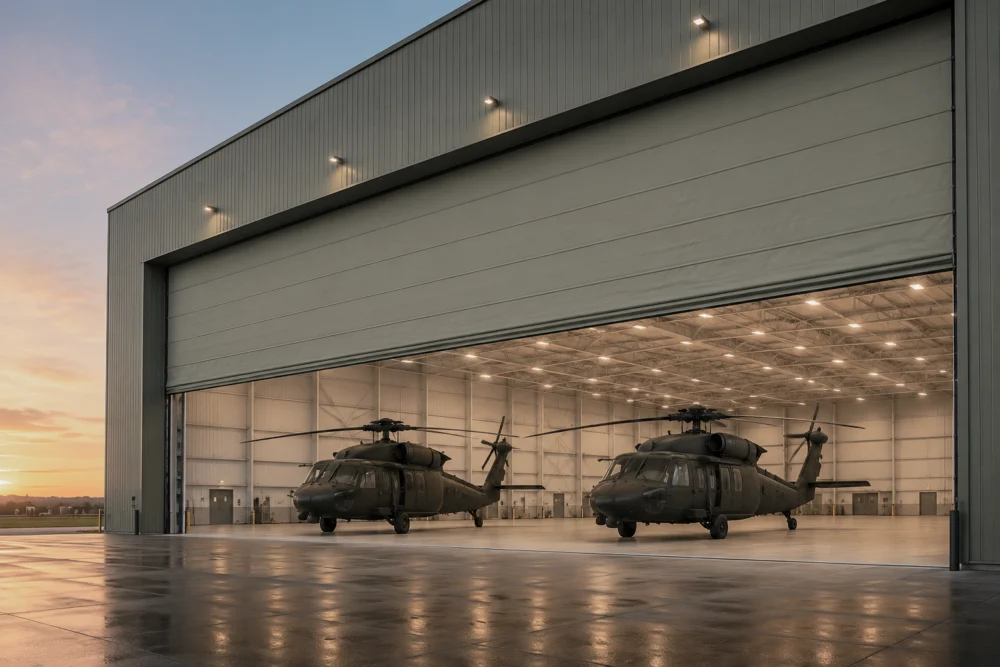

Military & Private Aviation
Secure and reliable door systems for military bases and private aviation hangars for guaranteed 24/7 operation.
Request a quote →

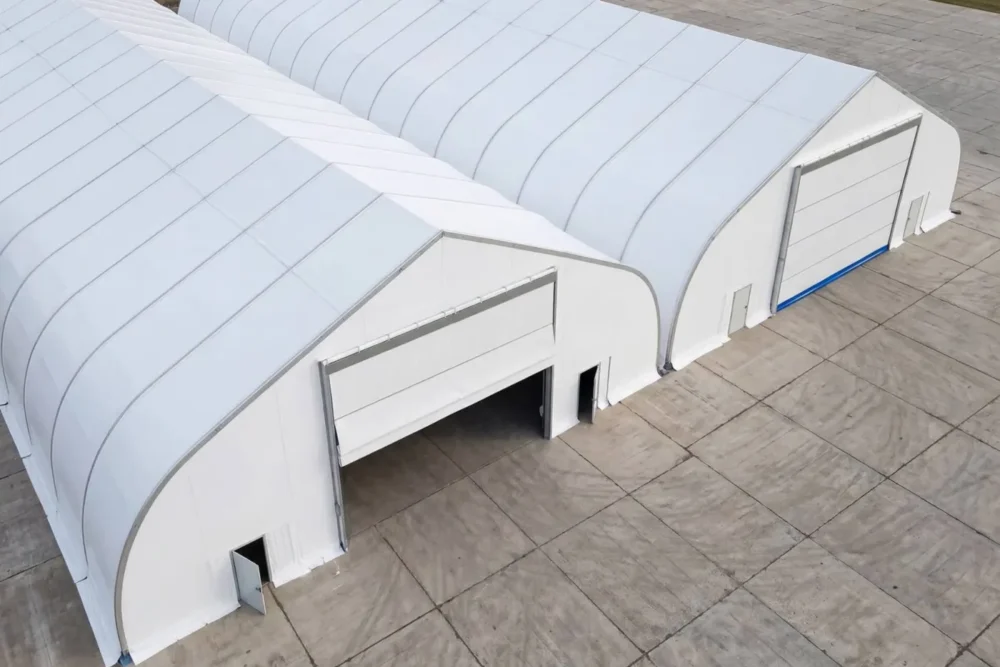

Other Hangars & Retrofit
High performance industrial doors. Complete retrofit solutions for existing industrial facilities and hangars.
Request a quote →Our solution

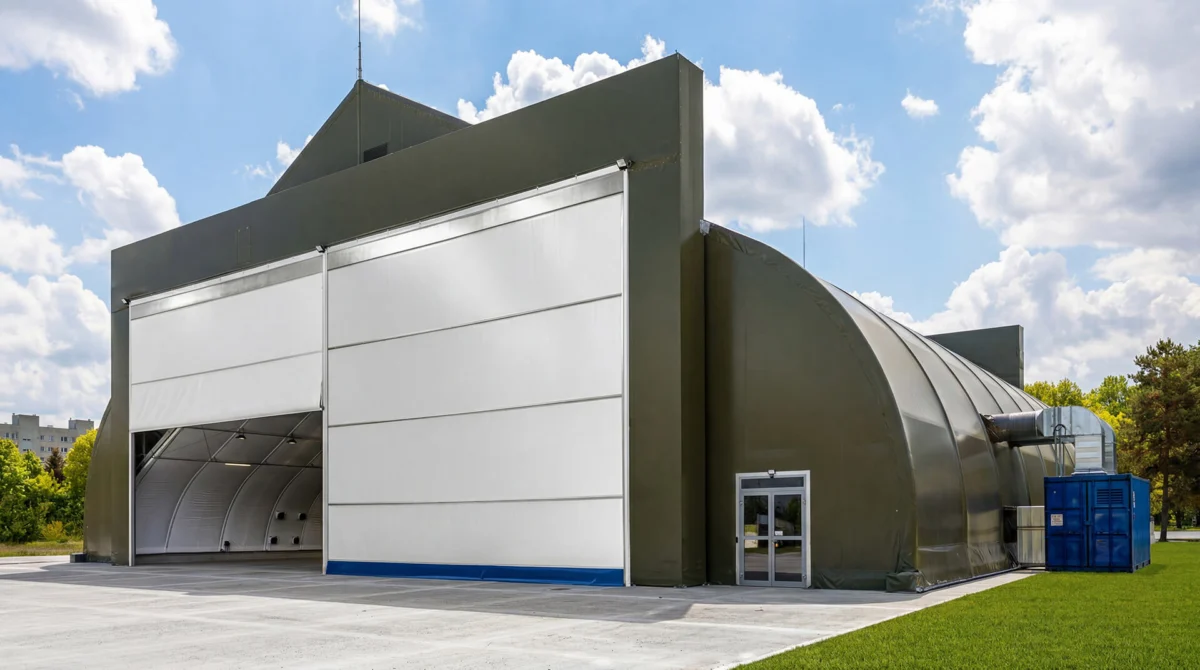

Single leaf door
Our next generation design enables single-leaf openings up to 35 metres wide. Modular system enables cost-efficiency, short delivery time and scalability. Each door is designed for the required dimensions and given wind loads.
- Clear span
- up to 35.0 m
- Clear height
- up to 22.0 m
- Opening speed
- 0.6 m/s

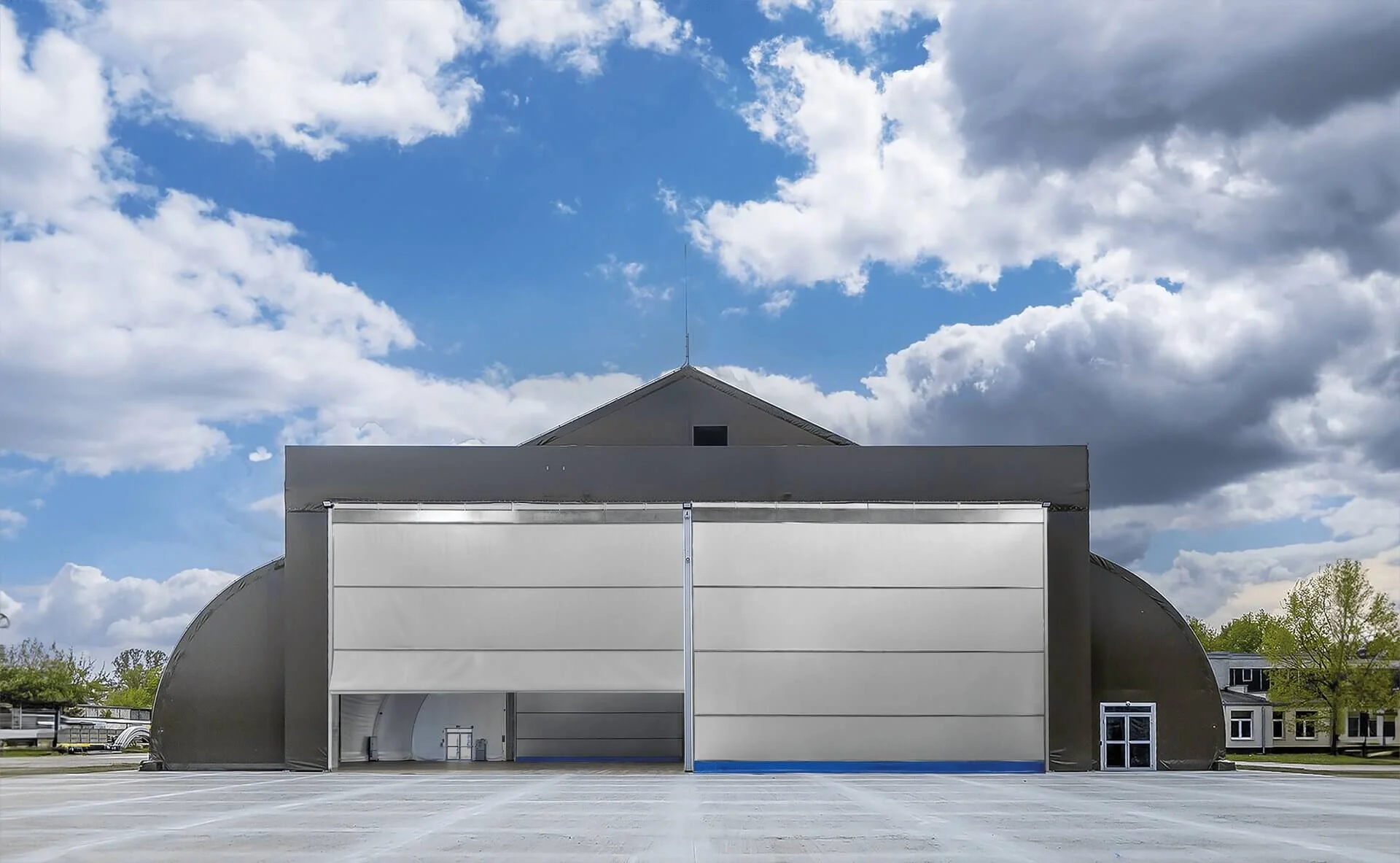

Multi-leaf door
For larger openings, multiple door leaves are combined with movable mullions to create a fully scalable system. This modular configuration enables virtually unlimited opening widths while maintaining reliable and efficient operation.
- Clear span
- unlimited
- Headroom required
- 0.9 m
- Retrofit to existing building
- Yes

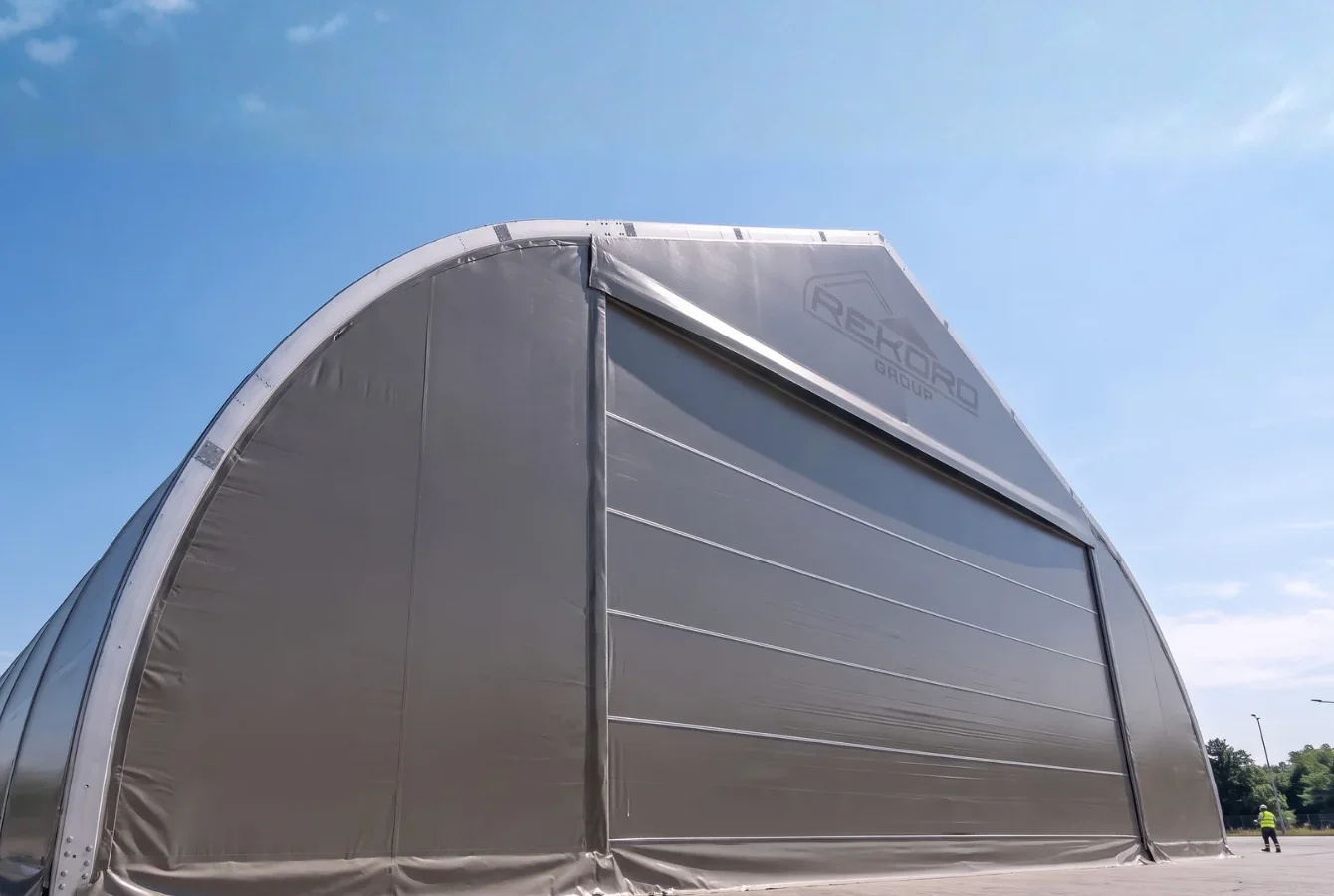

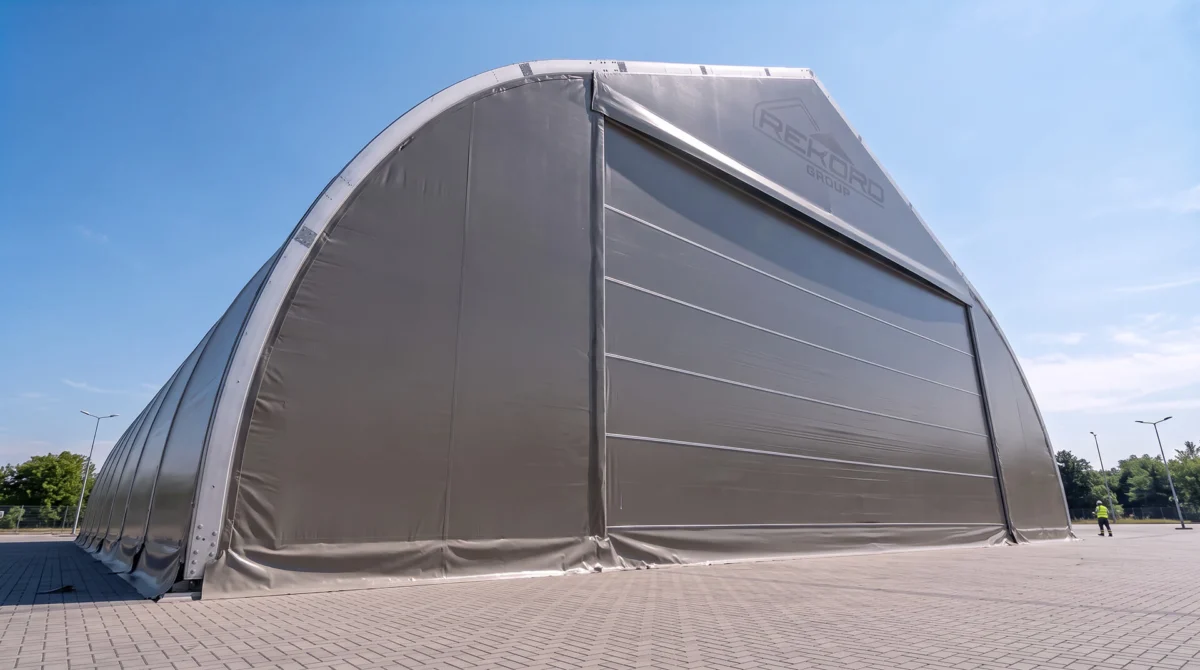

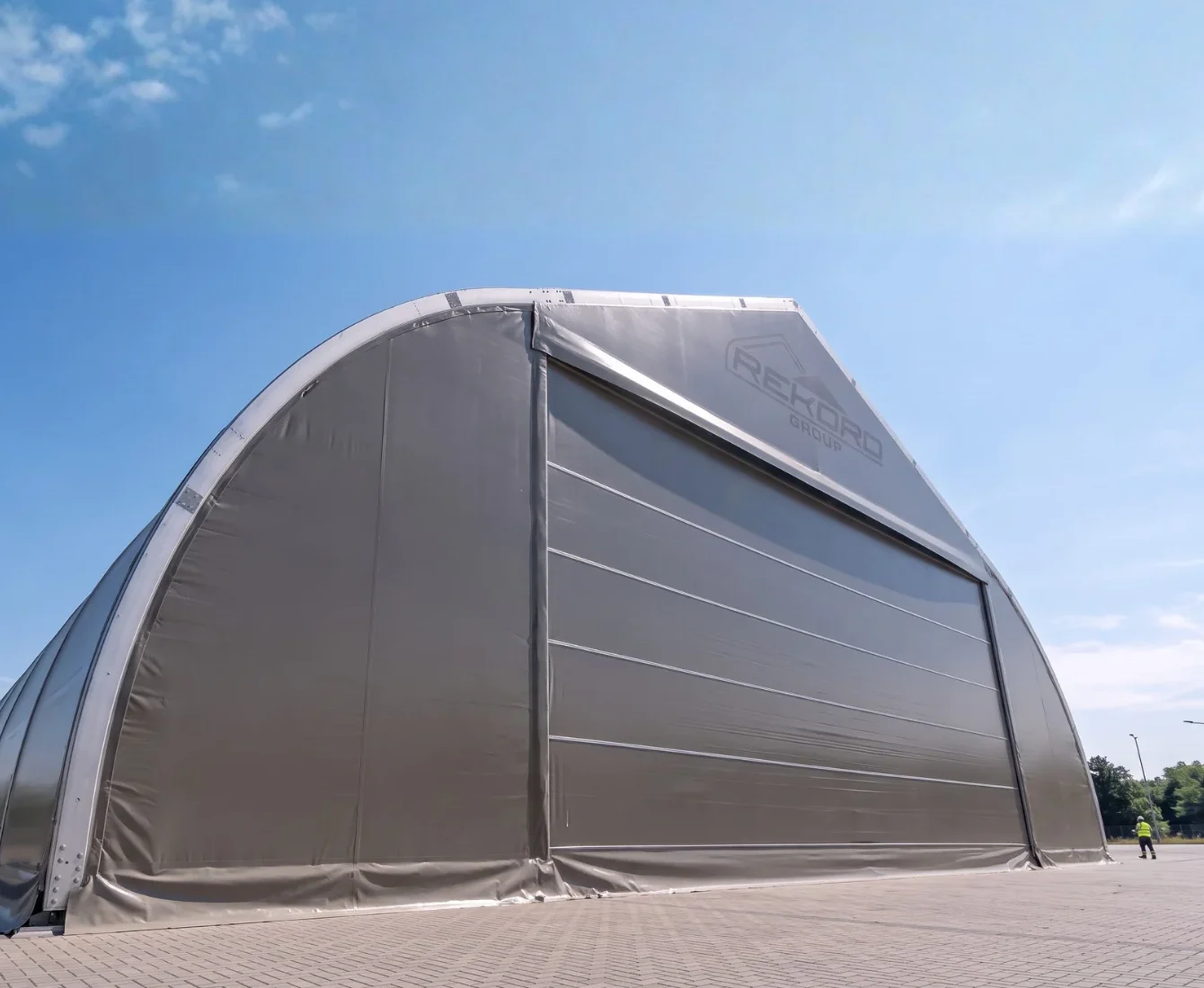

Deployable Hangar Door
Tested and Certified
Our vertical lift doors are tested and certified by ITB, Polish Building Research Institute, to ensure proven door performance in demanding conditions. The testing and certification process did result in door CE marking in accordance with applicable EN standards.
| Test scope | Result | Standard |
|---|---|---|
| Resistance to wind load | Class 5 | PN-EN 12424:2002 |
| Air permeability | Class 3 | PN-EN 12426:2002 |
| Water tightness | Class 3 | PN-EN 12425:2002 |
| Three door operating cycles under 400 Pa wind pressure | PASS | ITB own test method |
| Operating forces, safe opening, mechanical resistance and stability | PASS | PN-EN 12453:2002, PN-EN 12604:2002 |
Project Portfolio
Selection of Rekord Access project across Europe. Our project portfolio continues to grow, with new access solutions being designed and delivered in global markets
| Year | Type and Size | Wind class | Location |
|---|---|---|---|
| Military base | 4 × single leaf · 16.0 × 7.0 m | Class 4 | Europe |
| Military base | 1 x two-leaf door · 26.0 × 10.0 m | Class 5 | Europe |
| Military base | 3 x single leaf · 30.0 x 10.0 m | Class 4 | Europe |
| Deploayble Hangar | 1 x single leaf · 16.0 × 10.0 m | Class 4 | Poland |
| Energy generation | 1 x single leaf · 12.0 × 10.0 m | Class 3 | Norway |
| Heavy industry | 1 x single leaf · 6.0 × 6.0 m | Class 5 | Spain |
Request a quote
Provide us your opening dimensions, wind load and short description, and we come back to you within three working days with a quote.
- 01 The clear opening — width and height.
- 02 Wind load data or class.
- 03 Short description on your specific door needs.
